2x6 10 Meter Roll Solar Power Cable PV Photovoltaic

  • Sale
  • Regular price $35.95

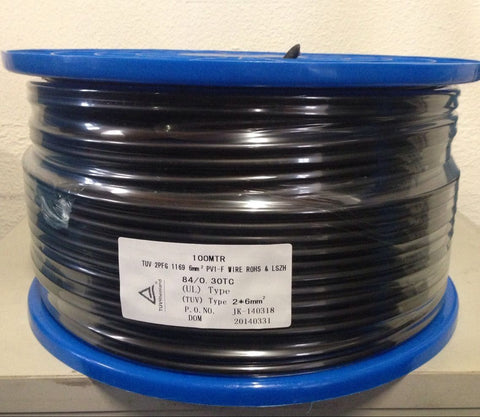

You are biding on the TÜV Rheinland approved twin core 4mm² or 6mm² solar power cable. The specification can be viewed in the uploaded photos. Our TÜV Rheinland official certificate is also uploaded for you.

Buy per 10 Meter Roll of 2x6mm. For more information if you are purchasing over 200 meters as a wholesaler.

The selection of of 4 or 6 mm² PV Cable depends on the specification you need, such as the Outdiameter diameter (number of wires to fit into the tube if you require), current carrying capacity.

Our TÜV Rheinland approved twin core PV cable:

Spec: Conductor Construction Outer Diameter Current Carrying Capacity

2x4.0 52/0.3 n/m 4.85x10.50mm 44 A

2X6.0 78/0.3 n/m 5.40x11.60mm 57 A

Caold Technology is an Australian presence for an international solar cable company, Shanghai Jiukau Wire& Cable Co., Ltd. Our solar cables meet all Australian standards including:

Fire Performance: IEC 60332-1

Smoke Emission: IEC 61034; EN 50268-2

Low Fire Load: DIN 51900

Approvals: TUV 2PfG 1169/08.2007 PV1-F

Application Standards: UNE 211 23L UNE 20.460-5-52; UTE C 32.502.

We are dedicated to the R&D, production and marketing of wires and cables, including TÜV Rheinland approved single/twin core PV solar cables, Earth cables, PV solar connectors (MC4), etc.

We incorporate the cutting-edge automatic production lines, first-class testing & inspection equipments and laboratories for cable security and application tests. We have a technical team of local and overseas professionals in cable industry. The highest standards of quality control and safety policy ensure our products continue to meet and exceed the Australian and International Standards. All our cables are certified by national or international professional testing organisations, such as CCC, UL, TÜV,VDE, CE, ISO9001:2000.
