Description

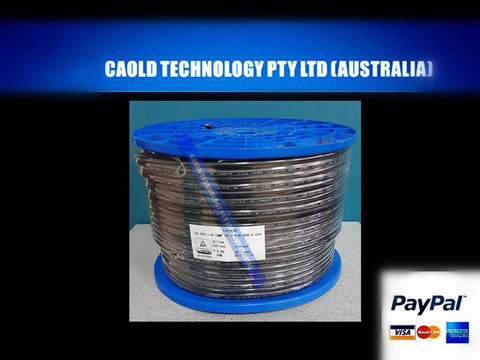

You are biding on the TÜV Rheinland approved twin core 10mm² solar power cable. The specification can be viewed in the uploaded photos. Our TÜV Rheinland official certificate is also uploaded for you.
Our UL, TÜV Rheinland approved twin core PV cable:
1.Tinned copper wire conductor
2.XLPE insulation
3.XLPE sheath
Cable Type
Conductor Construction
Max DC Resistance at 20 degree (ohm/KM)
Outer Diameter
Current Carrying Capacity
|
Cable Type |
Conductor Construction |
Max DC Resistance at 20 degree (ohm/KM) |
Outer Diameter |
Current Carrying Capacity |
|
2x4.0 mm2 |
52/0.3 n/m |
5.09 |
4.85x10.50mm |
44 A |
|
2X6.0 mm2 |
78/0.3 n/m |
3.39 |
5.4x11.60mm |
57 A |
|
2x10.0 mm2 |
142/0.3 n/m |
1.95 |
17.6x10.50mm |
98 A |
Regarding Postage
When you purchase, please let us know whether you would like the cable posted in one length or not either in the notes on the order or by direct message. If you do not specify, we will post the cable by the most economical way. This may mean sending multiple packages.
Please note that posting cable in a single length may incur additional costs due to the dimensions and weight of the package and potentially also depending on the postcode for delivery. If you choose this option, we will calculate how much extra postage is needed and inform you.
Caold Technology is an Australian presence for an international solar cable company, Shanghai Jiukau Wire& Cable Co., Ltd. Our solar cables meet all Australian standards including:
1. Core Conductor: Tinned annealed copper (stranded core)
2. Cable conductor: stranded tinned annealed copper
3. Insulation: electron-beam cross-linked Polyolefin(XLPE)
4. Jacket: XLPE (black, red)
5. Other specs:
a)Temperature rating: -40C up to +120C
b). Fire performance: IEC 60332-1, UL1581 VW-1
c). Approval: TUV Rheinland 2PfG 1169 1.5mm² to 50mm²
d). High resistance against hear, cold, abrasion, UV, Ozone and hydrolyes. Halogen free, flame ratardant
e). Voltage suitable: 600-1000V
Contact Us
Contact us directly on ebay for more information if you are purchasing over 500 meters as a wholesale.
About Us
We are dedicated to the R&D, production and marketing of wires and cables, including TÜV Rheinland approved single/twin core PV solar cables, Earth cables, PV solar connectors (MC4), etc.
We incorporate the cutting-edge automatic production lines, first-class testing & inspection equipments and laboratories for cable security and application tests. We have a technical team of local and overseas professionals in cable industry. The highest standards of quality control and safety policy ensure our products continue to meet and exceed the Australian and International Standards. All our cables are certified by national or international professional testing organisations, such as CCC, UL, TÜV，VDE, CE, ISO9001:2000.
We have been consistently ranked with the highest honors of “China Top Brand” and “China Cable Manufacturer TOP 100”. So far, we have extended and expanded our strategic partnership with numerous global electronic enterprises in Americas, Europe, Middle-east, Southeast Asia and Africa.
Caold Technology based on Clayton Victoria 3168 is the Australian distributor and service agent with all product supplies in stock at great wholesale price. We are striving to provide a reliable and fast supply turnover, convenience of direct delivery, local service and support to ensure our superior satisfaction guarantee for all Australian customers.
