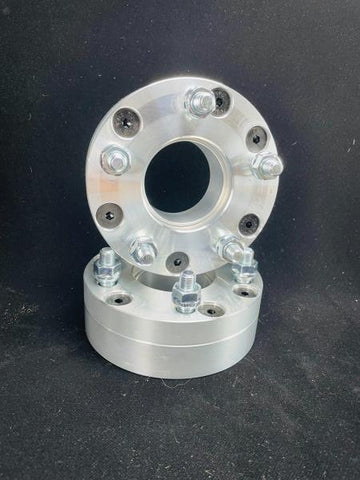

Caold Technology wheel spacer adapters:
Per 1 qty order is 1 pair, 2 pcs.
- Car PCD - 6x120
- Wheel PCD - 5x108
- Outer Diameter- 154 mm
- Hub centric lip height - 8 mm
All our spacers are made to order so we require the following information (please let us know in the section 'Special Instruction for Seller' when you checkout):
- Car CB (mm) - 66.9/Other (please state)
- Wheel CB (mm) - 58.1/60.1/63.4/63.5/65.1/67.1/Other (please state)
- Stud Size - M12x1.25/ M12x1.5/ M14x1.5/ 1/2-20 UNF/ 7/16-20
If you require a different stud size than listed or if your car uses lug bolts please contact us first
We can make the spacers with or without a hub centric lip
For 30mm spacer, 10mm open ended nuts will be provided.
For 35mm or thicker spacer, 16mm open ended nuts will be provided.
Regarding the thickness: In order to adapt between stud patterns with different number of studs, we stack two spacers together (the hub side on the bottom and the wheel side on top), so 30mm in this case is two 15mm spacers stacked together (30mm is therefore also the minimum thickness we can do). If you have any queries or questions about this, please contact us first.
If you have special request or different specs you'd like to pursue, please contact us via email, sales@caold.com.au or call our number 03 9560 1660 (weekdays 9.30am to 5pm AEST) or text our phone number 0423 499 258.
