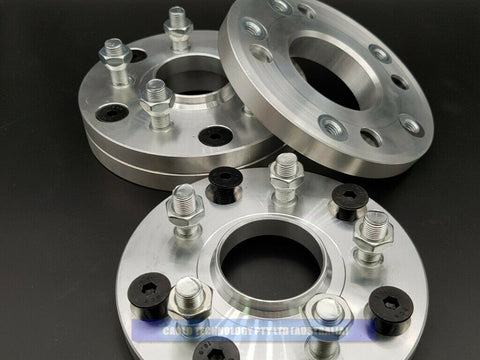

Caold Technology wheel spacer adapters:
Per 1 qty order is 1 pair, 2 pcs.
- Car PCD - 4x114.3
- Wheel PCD - 5x127
- Outer Diameter- 165 mm
- Hub centric lip height - 8 mm
For the following, please let us know in the section 'Special Instruction for Seller' when you checkout
- Car CB - 56.6/59.5/59.6/60.1/64.0/64.1/66.1/67.1/69.1/71.5/73.1mm/Other (please state)
- Wheel CB - 70.3/71.5/71.6/78.1mm/Other (please state)
- Stud Size - M12x1.25/ M12x1.5/ M14x1.5/ 1/2-20 UNF/ 7/16-20
If you require a different stud size than listed, please contact us first
For 30mm spacer 10mm open ended nuts will be provided.
For 40mm or thicker spacer 16mm open ended nuts will be provided.
Regarding the thickness: In order to adapt between stud patterns with different number of studs, we stack two spacers together (the hub side on the bottom and the wheel side on top), so 30mm in this case is two 15mm spacers stacked together (30mm is therefore also the minimum thickness we can do). If you have any queries or questions about this, please contact us first.
Disclaimer* if you car uses lug bolts, this is very important!!!
We recommend using 20mm thick, since your car is using lug bolts, that means you may need spacer bolts to secure the spacer onto your hub.
The spacer bolts we have (sold separately) hex head is a little bit taller than the spacer for 15mm ref to attachment.
It will be flush if the spacer is 20mm plus. ref to attachment.
some cases where the wheels have gap in between the stud holes, hex head can perfectly sit in there, but only some cases works.
If you have special request or different specs you'd like to pursue, please contact us via email, sales@caold.com.au or call our number 03 9560 1660 (weekdays 9.30am to 5pm or text our phone number 0423 499 258.
