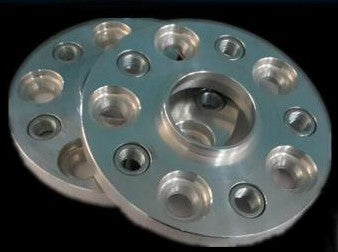

Caold Technology wheel spacer adapters:
This style of spacer is intended for use with cars that use lug bolts. Please see the diagram for a guide to installation. You will most likely also require low-spacer bolts for use with these spacers (sold separately)
Per 1 qty order is 1 pair, 2 pcs.
Car PCD - 5x112
Wheel PCD - 5x112
Car CB - 66.6 mm
If your car centre bore is a different size please contact us first.
Wheel CB - 57.1 / 63.4 / 66.5 / 66.6 / 72.5 mm or custom size
If 'Custom size' is your option, please provide the size in the 'Special Instruction for Seller' section.
Threading Insert Thread Size - M12x1.25/ M12x1.5/ M14x1.5
*Please let us know in the section 'Special Instruction for Seller' when you checkout.*
Outer Diameter- 154 mm
Hub centric lip height - 8 mm
Disclaimer* if you car uses lug bolts, this is very important!!!
We recommend using 20mm thick, since your car is using lug bolts, that means you may need spacer bolts to secure the spacer onto your hub.
The spacer bolts we have (sold separately) hex head is a little bit taller than the spacer for 15mm ref to attachment.
It will be flush if the spacer is 20mm plus. ref to attachment.
some cases where the wheels have gap in between the stud holes, hex head can perfectly sit in there, but only some cases works.
If you have special request or different specs you'd like to pursue, please contact us via email, sales@caold.com.au or call our number +61395601660 (weekdays 9.30am to 5pm AEST) or text our phone number 0423 499 258.
